AT 500-SR
14–16ft (4.3–4.9m) boats
Single axle boat trailer with 16 multi-roller system to suit boats around 14 to 16 foot (4.3 to 4.9m). Heavier chassis and upgraded winch for mid-size hulls.
From$4,270incl. GST
Click to enlarge
1 / 4
Multi-Roller · Tandem Axle

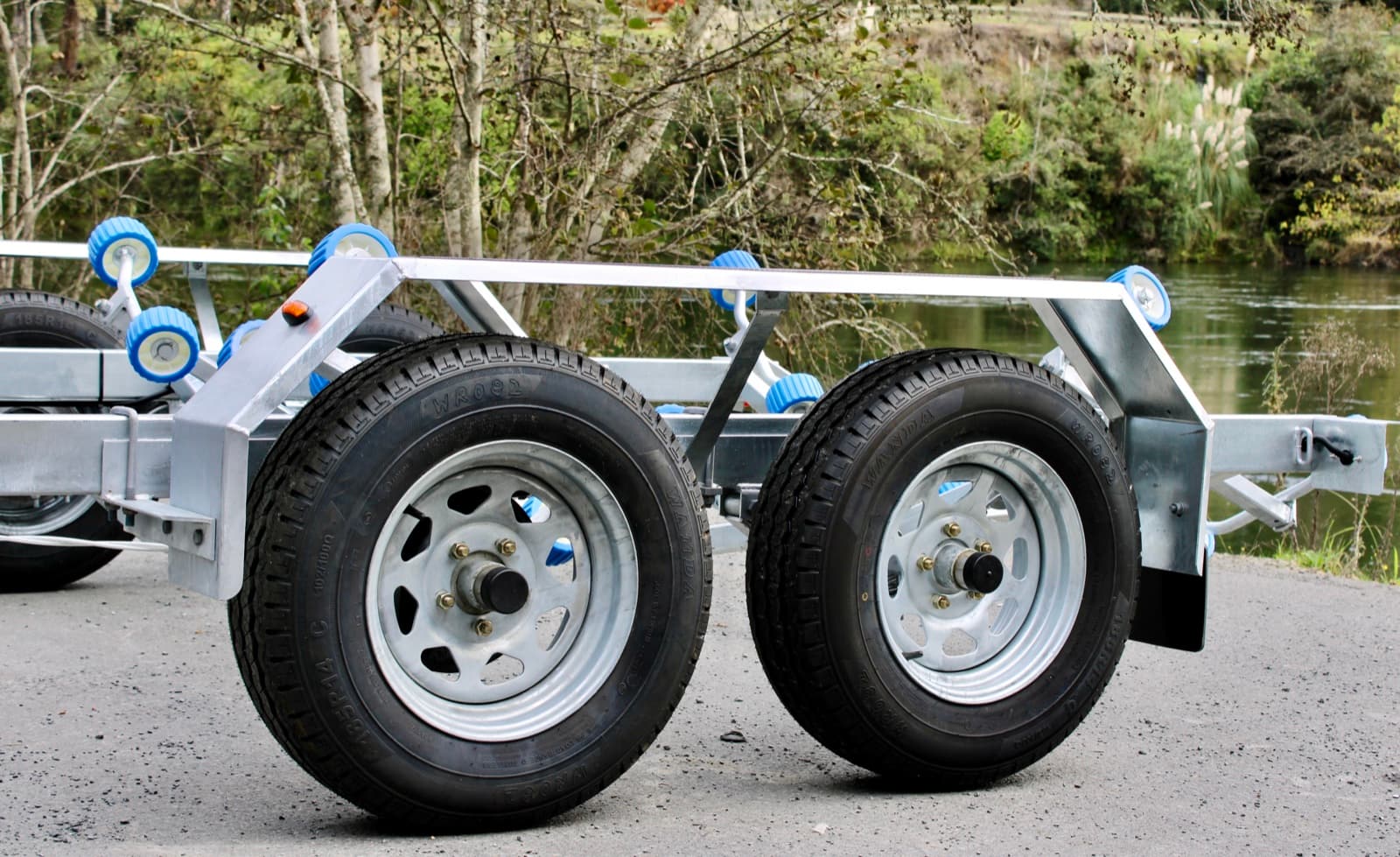

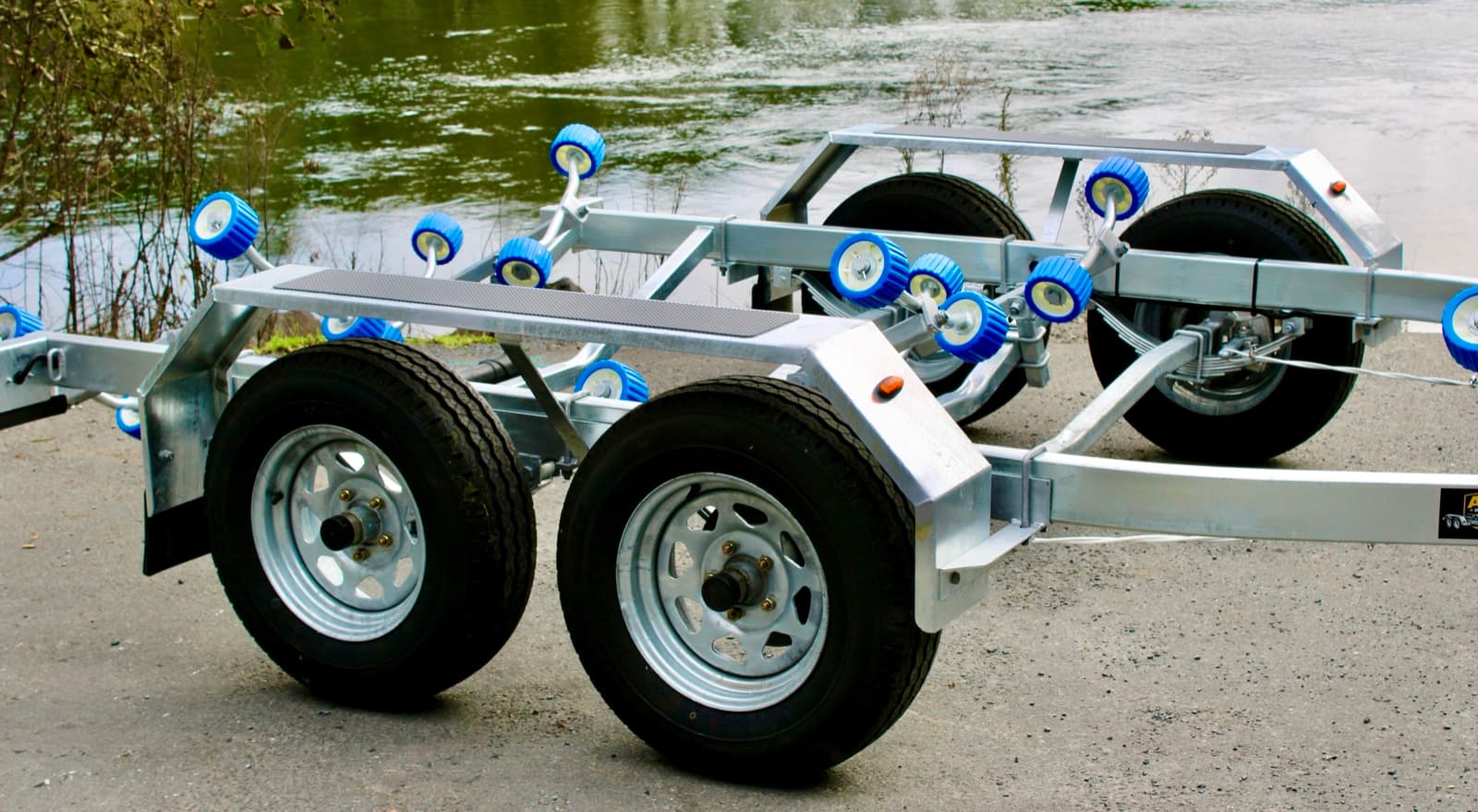

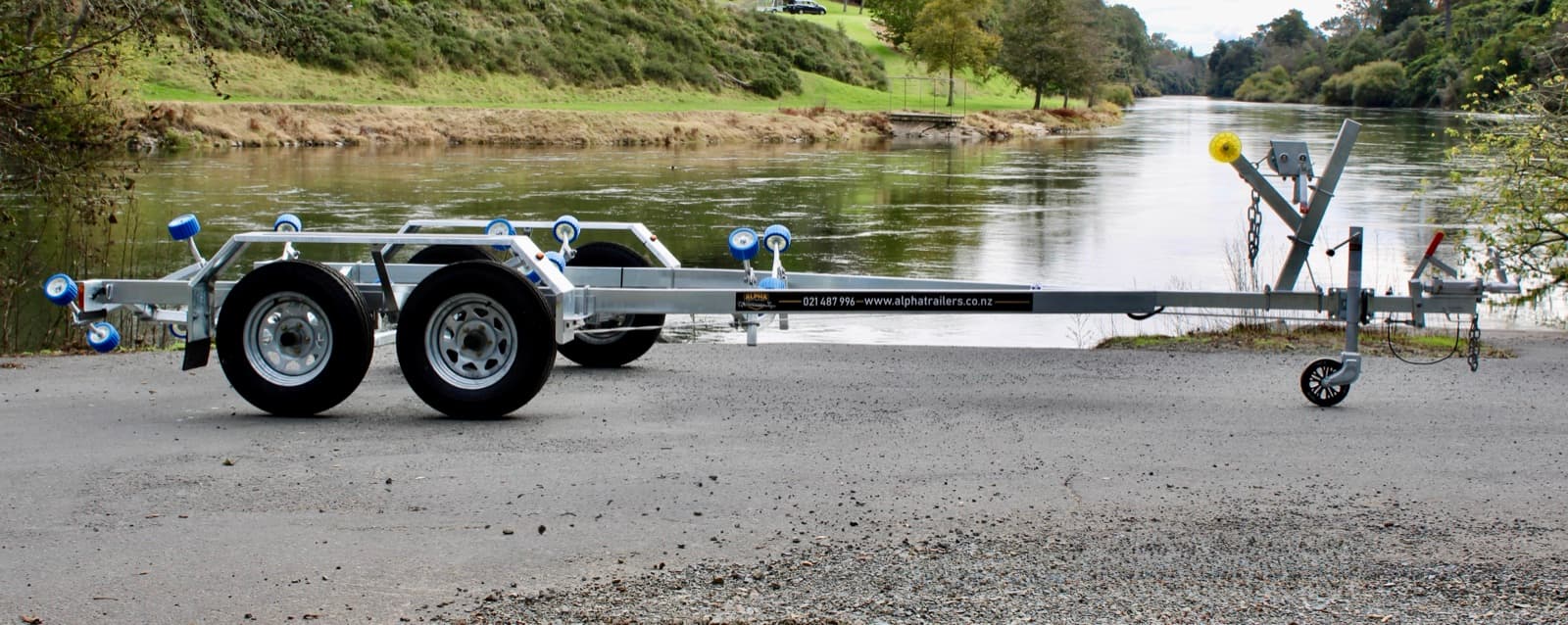

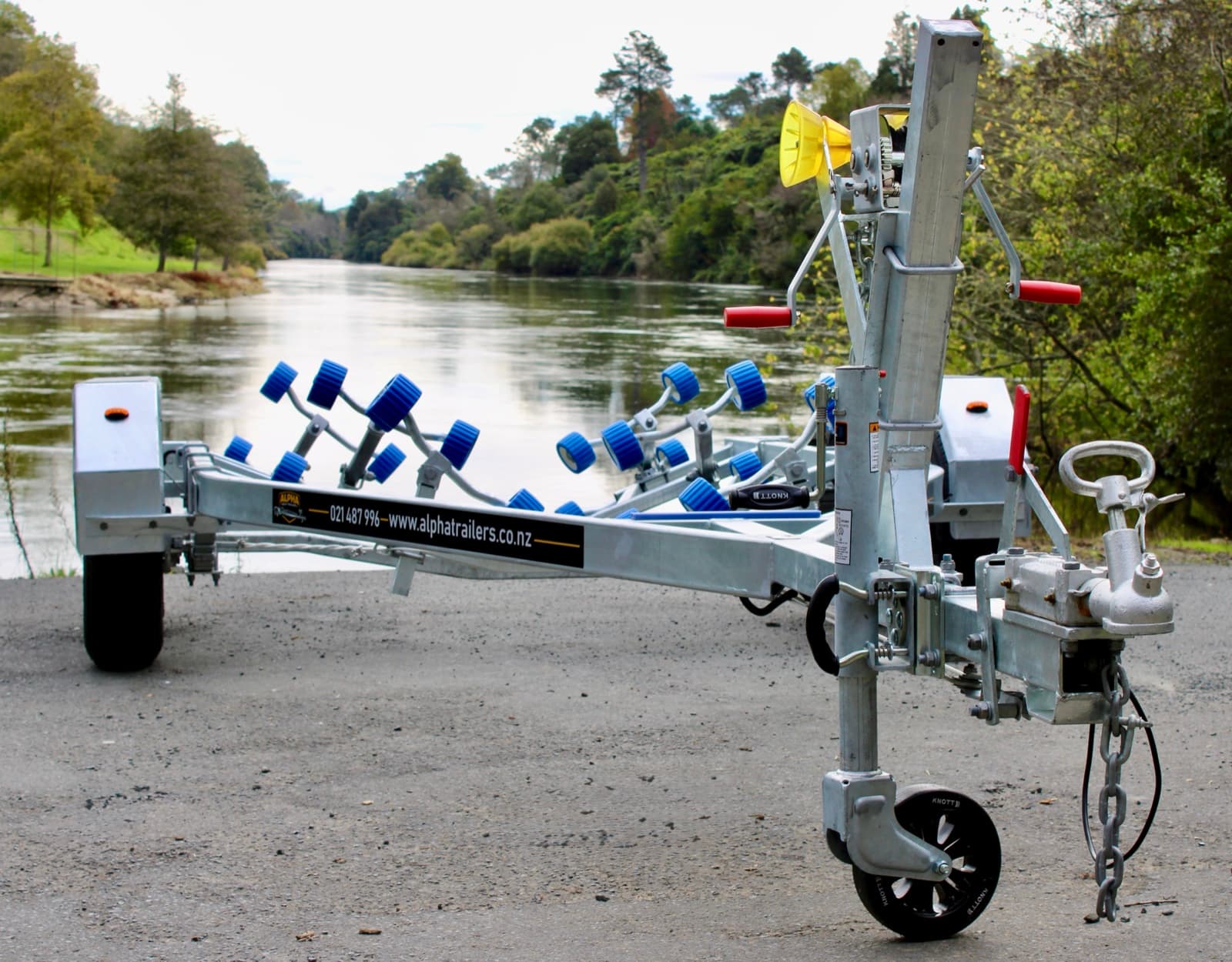

AT 550 Tandem
Suits 15–17ft (4.6–5.2m) boats
Tandem axle boat trailer with 20 multi-roller system to suit boats around 15 to 17 foot (4.6 to 5.2m). Twin-axle stability for mid-size hulls with the same heavy-duty spec as the AT 550-SR.
From
$5,900
incl. GST · delivery extra
Heavy-duty steel
Hot-dip galvanised
NZ-wide delivery
Specifications
Chassis70 × 50 × 4mm
Drawbar70 × 70 × 4mm
Rollers20 multi-roller system
Tyres185 R14, 5-stud, galvanised rims (850kg rated)
WinchTrojan 10:1 double-handle, 3,500kg synthetic rope
BrakesNon-braked (cable or hydraulic optional)
GVM2,000kg
What's included
- 70 × 50 × 4mm chassis
- 70 × 70 × 4mm heavy-duty drawbar
- 70 × 70 heavy-duty winch post with bracket
- 20 multi-roller system
- LED submersible sealed tail lights on solid brackets
- LED sealed width side lights on mudguards
- 7-pin flat plug fitted
- Trojan 10:1 double-handle winch with 3,500kg synthetic rope
- Knott HD galvanised side wind-up jockey wheel
- Steel curved mudguards
- Flexible rubber number plate holder
- Galvanised or stainless steel fasteners
- Galvanised rims, 5-stud, 185 R14 heavy-duty tyres (850kg rated)
- Bearing buddies fitted as standard
- Bow chain and D-shackles included
- Fully adjustable design
- Hot-dip galvanised frame and components
Compatibility
Suitable hull types
- Rigid hull inflatables
- Fibreglass hulls
- Aluminium hulls
- Strong wooden hulls
- Trailer sailers
Popular makes
- Fyran
- Marco
- McLay
- Buccaneer
- Haines
- Pelin
- Ramco
- Stabicraft
- Bonito
- Steadecraft
- Fleetline
- Reflex
- Surtees
Not sure which model?
Tell us your boat — length, hull type, where you launch — and we'll match the right trailer and price.
