Multi-Roller · Single Axle
AT 500-SR
Suits 14–16ft (4.3–4.9m) boats
Single axle boat trailer with 16 multi-roller system to suit boats around 14 to 16 foot (4.3 to 4.9m). Heavier chassis and upgraded winch for mid-size hulls.
From
$4,270
incl. GST · delivery extra
Heavy-duty steel
Hot-dip galvanised
NZ-wide delivery
Specifications
Chassis70 × 50 × 4mm
Drawbar70 × 70 × 4mm
Rollers16 multi-roller system
Tyres165 R13, 5-stud, galvanised rims (670kg rated)
WinchTrojan 5:1, 3,500kg synthetic rope
BrakesNon-braked
GVM1,250kg
What's included
- 70 × 50 × 4mm chassis
- 70 × 70 × 4mm heavy-duty drawbar
- 70 × 70 heavy-duty winch post with bracket
- 16 multi-roller system
- LED submersible sealed tail lights on solid brackets
- LED sealed width side lights on mudguards
- 7-pin flat plug fitted
- Trojan 5:1 ratio winch with 3,500kg synthetic rope

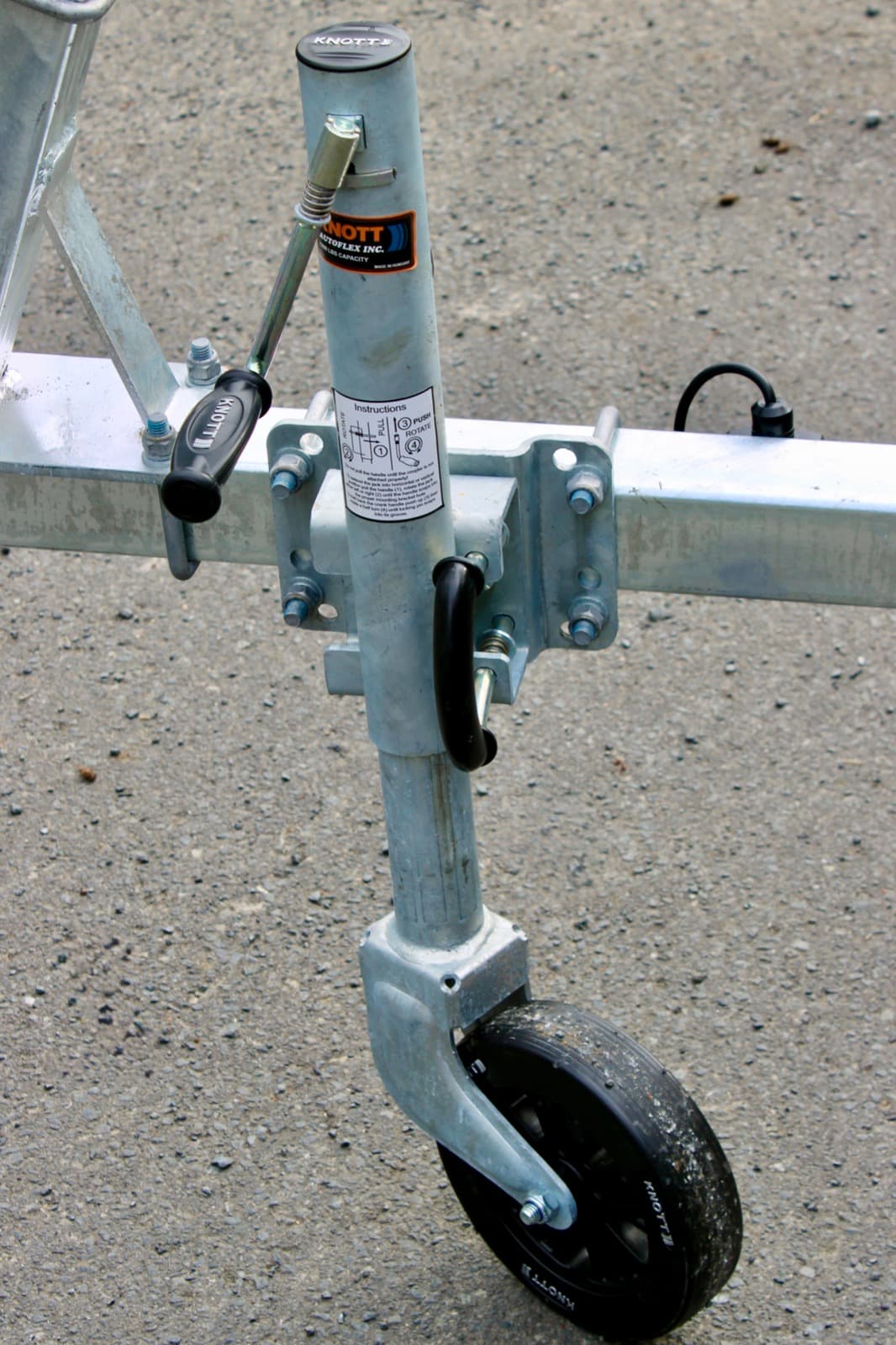

- Knott HD galvanised side wind-up jockey wheel with grease nipple
- Steel curved mudguards
- Flexible rubber number plate holder
- Galvanised or stainless steel fasteners
- Galvanised rims, 5-stud, 165 R13 tyres (670kg rated)
- Bearing buddies fitted as standard
- Bow chain and D-shackles included
- Fully adjustable design
- Hot-dip galvanised frame and components
Compatibility
Suitable hull types
- Rigid hull inflatables
- Fibreglass hulls
- Aluminium hulls
- Strong wooden hulls
- Trailer sailers
Popular makes
- Senator
- Fyran
- McLay
- Marco
- Stabicraft
- Buccaneer
- Bonito
- Ramco
- Steadecraft
- Pelin
- Reflex
- Surtees
Not sure which model?
Tell us your boat — length, hull type, where you launch — and we'll match the right trailer and price.
