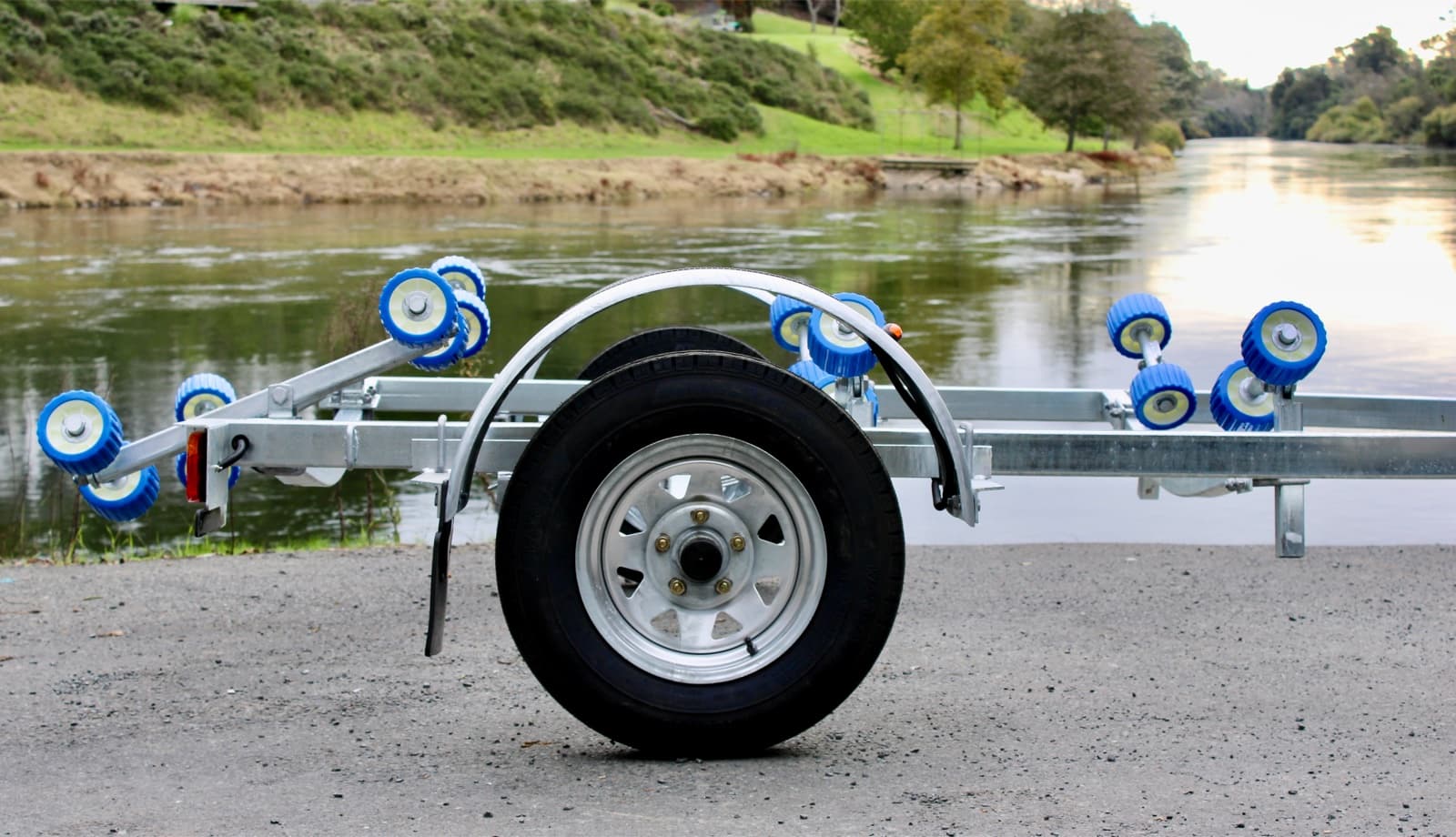

AT 450-SR 16 boat trailer — photo 1
Click to enlarge
1 / 4

Multi-Roller · Single Axle

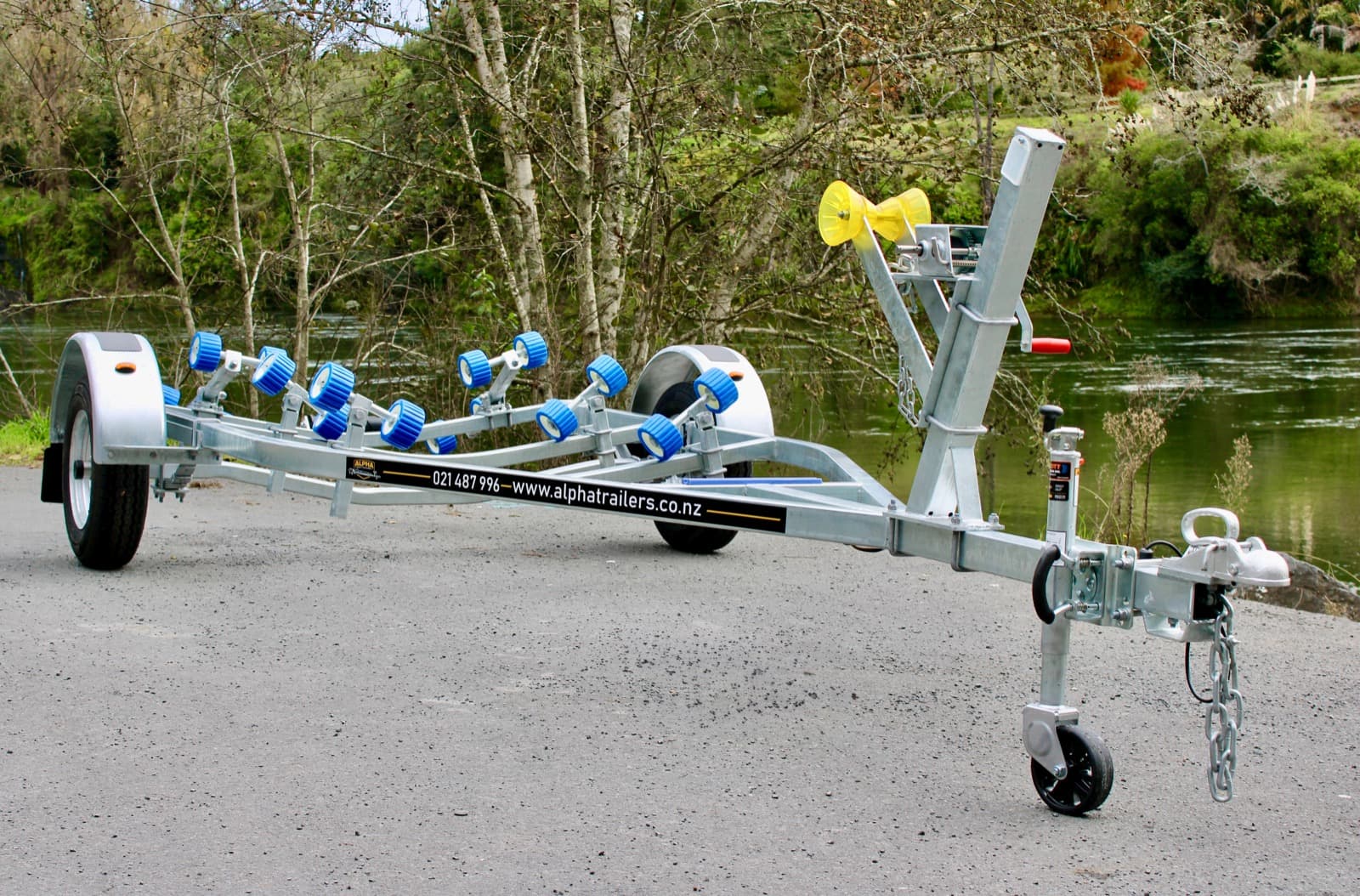

AT 450-SR 16

Suits 12–14ft (3.7–4.3m) boats

Single axle boat trailer with 16 multi-roller system to suit boats around 12 to 14 foot (3.7 to 4.3m). The 16-roller setup suits wider hulls and heavier small boats.

From

$3,570

incl. GST · delivery extra

Get a Quote021 487 996

Heavy-duty steel

Hot-dip galvanised

NZ-wide delivery

Specifications

Chassis70 × 50 × 3mm
Drawbar70 × 70 × 4mm
Rollers16 multi-roller system
Tyres165 R13, 5-stud, galvanised rims (670kg rated)
WinchTrojan 3:1, 2,500kg synthetic rope
BrakesNon-braked
GVM1,000kg

What's included

  • 70 × 50 × 3mm chassis
  • 70 × 70 × 4mm heavy-duty drawbar
  • 70 × 70 heavy-duty winch post with bracket
  • 16 multi-roller system
  • LED submersible sealed tail lights on solid brackets
  • LED sealed width side lights on mudguards
  • 7-pin flat plug with holder
  • Trojan 3:1 ratio winch with 2,500kg synthetic rope
  • Knott galvanised wind-up jockey wheel with grease nipple
  • Steel curved mudguards
  • Flexible rubber number plate holder
  • Galvanised or stainless steel fasteners
  • Galvanised rims, 5-stud, 165 R13 tyres (670kg rated)
  • Bearing buddies fitted as standard
  • Bow chain and D-shackles included
  • Fully adjustable components
  • Hot-dip galvanised frame

Compatibility

Suitable hull types

  • Fibreglass hulls
  • Rigid hull inflatables
  • Aluminium tinnies
  • Solid wooden hulls
  • Trailer sailers

Popular makes

  • Fyran
  • Stabicraft
  • Marco
  • Parker Craft
  • Reflex
  • Pelin
  • Senator
  • Fleetline
