Alpha Trailers

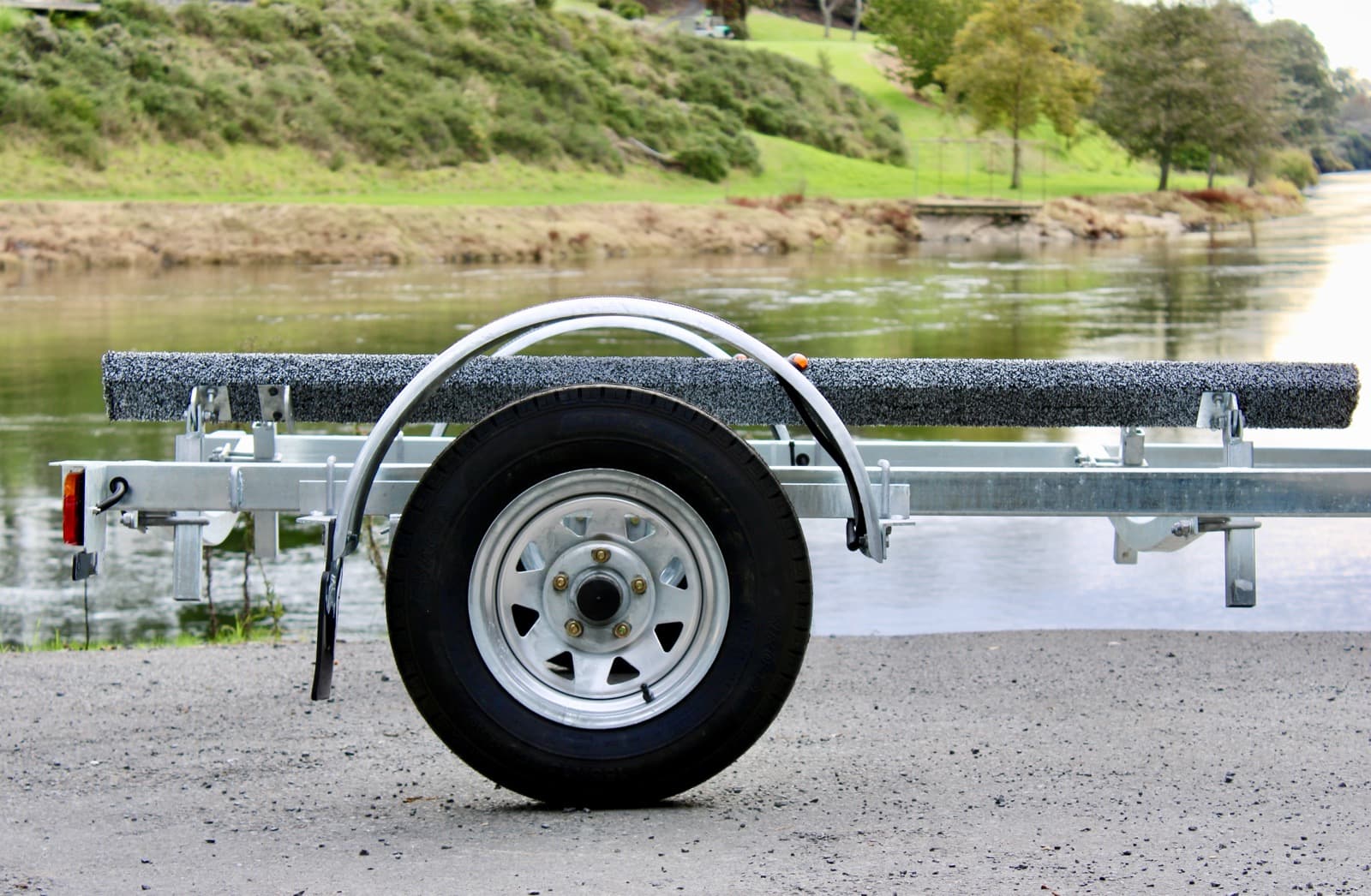

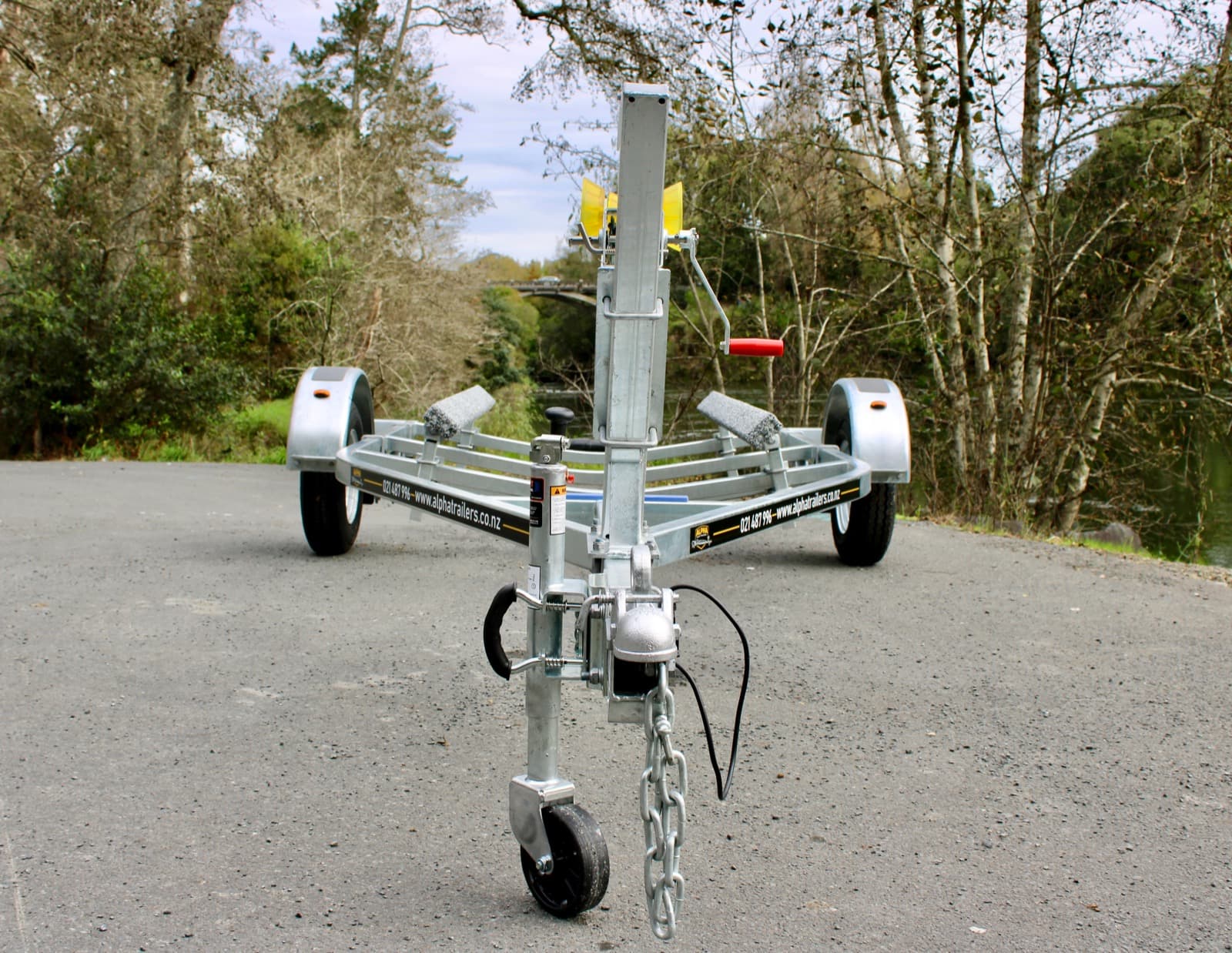

AT 450-CP boat trailer — photo 1
Click to enlarge
1 / 4

Carpet Pad · Single Axle

AT 450-CP

Suits 12–14ft (3.7–4.3m) boats

Single axle boat trailer to suit boats around 12 to 14 foot (3.7 to 4.3m). Standard 1.8m pads with synthetic lawn covering — pads can be made to customer requirements.

From

$3,130

incl. GST · delivery extra

Get a Quote021 487 996

Heavy-duty steel

Hot-dip galvanised

NZ-wide delivery

Specifications

Chassis70 × 50 × 3.5mm
Drawbar70 × 70 × 4mm
Rollers/Pads1.8m carpet pads (synthetic lawn)
Tyres165 R13, 5-stud, galvanised rims (670kg rated)
WinchTrojan 3:1, 2,700kg synthetic rope
BrakesNon-braked
GVM1,000kg

What's included

  • 70 × 50 × 3.5mm chassis
  • 70 × 70 × 4mm heavy-duty drawbar
  • 70 × 70 heavy-duty winch post with bracket
  • Standard 1.8m pads with synthetic lawn covering
  • LED submersible sealed tail lights on solid brackets
  • LED sealed width side lights on mudguards
  • 7-pin flat plug with holder

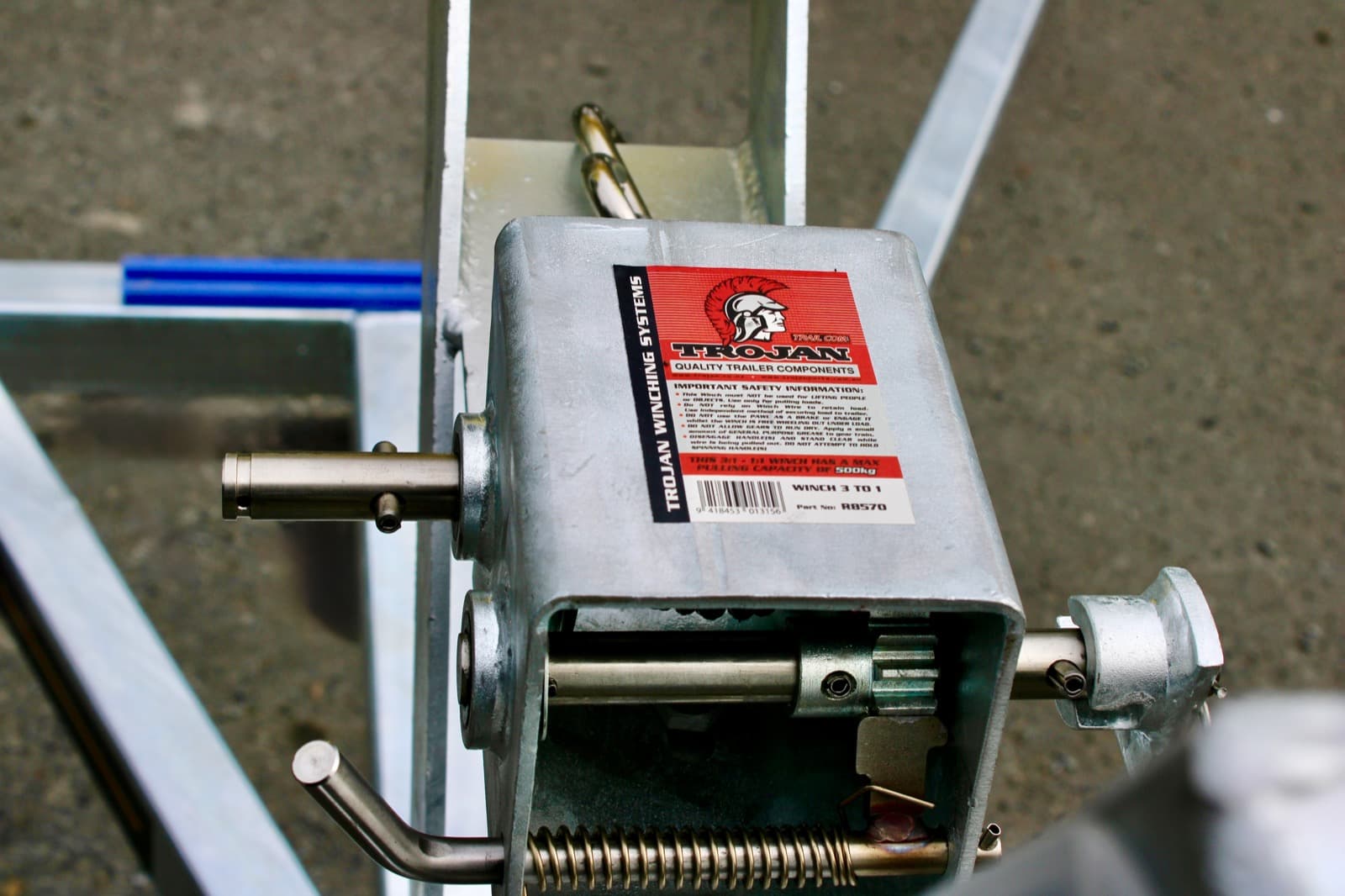

  • Trojan 3:1 ratio winch with 2,700kg synthetic rope
  • Knott galvanised wind-up jockey wheel with grease nipple
  • Steel curved mudguards
  • Flexible rubber number plate holder
  • Galvanised or stainless steel fasteners
  • Galvanised rims, 5-stud, 165 R13 tyres (670kg rated)
  • Bearing buddies fitted as standard
  • Bow chain and D-shackles included
  • Fully adjustable winch post, pads, and axle
  • Hot-dip galvanised frame and components

Compatibility

Suitable hull types

  • Trailer sailers
  • Fibreglass hulls
  • Light-bottomed hull boats
  • Tinnies
  • Rigid and soft bottom inflatables

Popular makes

  • Fyran
  • Marco
  • Senator
  • Stabicraft
  • Aquamaster
  • Smart Wave
  • Dory
