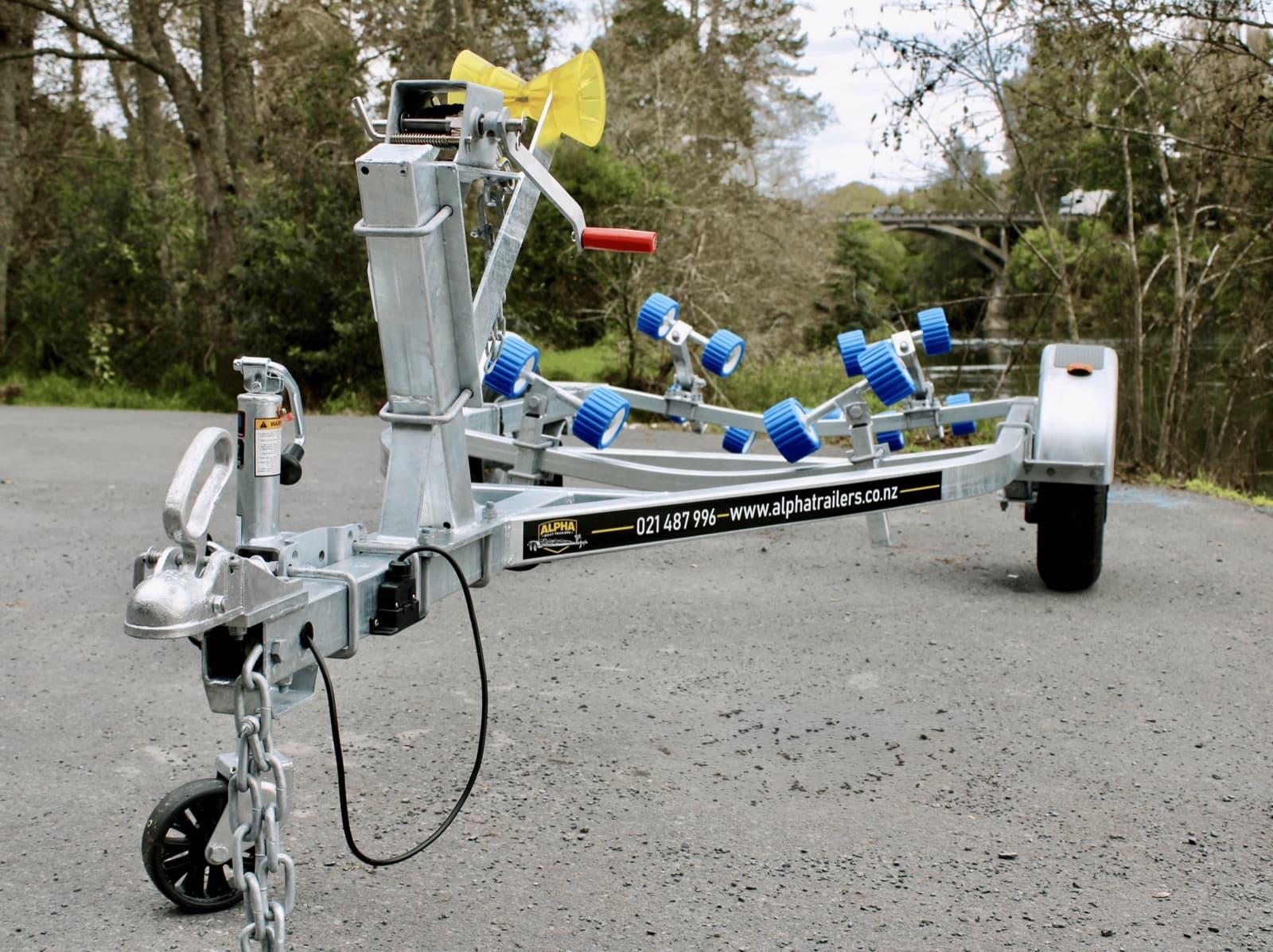

AT 350-SR boat trailer — photo 1
Click to enlarge
1 / 4

Multi-Roller · Single Axle

AT 350-SR

Suits 10–12ft (3.0–3.7m) boats

Single axle boat trailer with 12 multi-roller system to suit boats around 10 to 12 foot (3.0 to 3.7m). Also suitable for jet skis. Designed for easy launch and retrieval.

Price on enquiry

Get in touch for a quote on this model

Get a Quote021 487 996

Heavy-duty steel

Hot-dip galvanised

NZ-wide delivery

Specifications

Chassis70 × 50 × 3mm
Drawbar70 × 70 × 4mm
Rollers12 multi-roller system
Tyres155 R12, 4-stud, galvanised rims
WinchTrojan 3:1, 2,500kg synthetic rope
BrakesNon-braked
GVM750kg

What's included

  • 70 × 50 × 3mm chassis
  • 70 × 70 × 4mm heavy-duty drawbar
  • 70 × 70 heavy-duty winch post with bracket
  • 12 multi-roller system
  • LED submersible lights on solid brackets
  • LED sealed width indicator lights on mudguards
  • 7-pin flat plug and holder fitted
  • Trojan 3:1 ratio winch with 2,500kg synthetic rope
  • Knott galvanised wind-up jockey wheel with grease nipple
  • Steel curved mudguards
  • Flexible rubber number plate holder
  • Galvanised or stainless steel fasteners
  • Galvanised rims, 4-stud, 155 R12 heavy-duty tyres
  • Bearing buddies fitted as standard
  • Bow chain and D-shackles fitted as standard
  • Fully adjustable winch post, rollers, and axle
  • Entire frame fully hot-dip galvanised

Compatibility

Suitable hull types

  • Fibreglass hulls
  • Wooden hulls
  • Jet skis
  • Rigid hull inflatables
  • Plastic hulls
  • Light aluminium hulls

Popular makes

  • Fyran
  • Quintex
  • Marco
