AT 600-SR
18–20ft (5.5–6.1m) boats
Single axle boat trailer with 20 multi-roller system to suit boats around 18 to 20 foot (5.5 to 6.1m). Flagship single-axle with 100mm chassis and 10:1 ratio winch.
From$5,995incl. GST
Click to enlarge
1 / 4
Multi-Roller · Single Axle

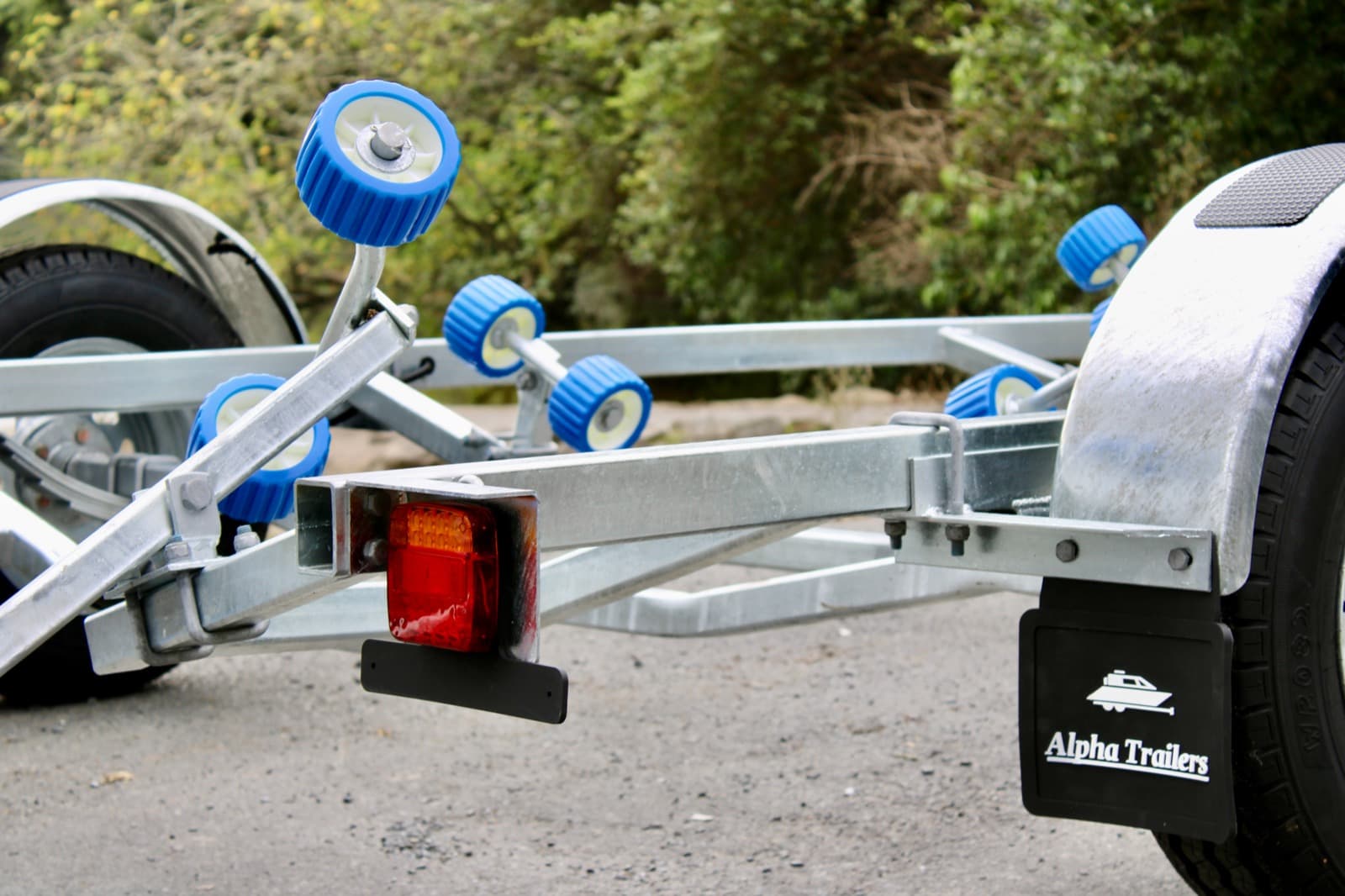

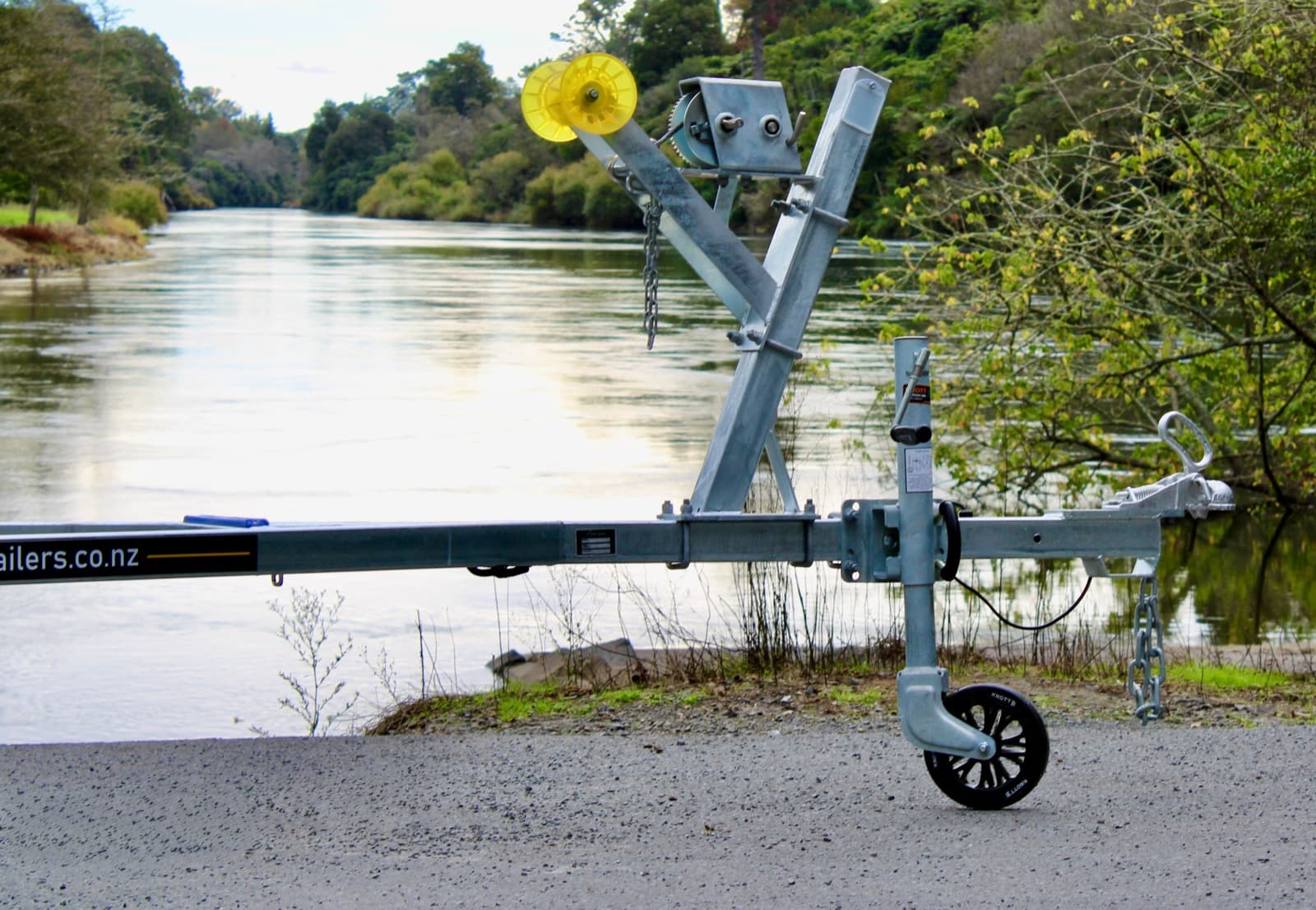

AT 550-SR
Suits 15–17ft (4.6–5.2m) boats
Single axle boat trailer with 20 multi-roller system to suit boats around 15 to 17 foot (4.6 to 5.2m). Heavy-duty spec with upgraded tyres and winch.
From
$4,975
incl. GST · delivery extra
Heavy-duty steel
Hot-dip galvanised
NZ-wide delivery
Specifications
Chassis70 × 50 × 4mm
Drawbar70 × 70 × 4mm
Rollers20 multi-roller system
Tyres185 R14, 5-stud, galvanised rims (850kg rated)
WinchTrojan 5:1, 3,500kg synthetic rope
BrakesNon-braked (cable or hydraulic optional)
GVM1,500kg
What's included
- 70 × 50 × 4mm chassis
- 70 × 70 × 4mm heavy-duty drawbar
- 70 × 70 heavy-duty winch post with bracket
- 20 multi-roller system
- LED submersible sealed tail lights on solid brackets
- LED sealed width side lights on mudguards
- 7-pin flat plug fitted
- Trojan 5:1 ratio winch with 3,500kg synthetic rope
- Knott HD galvanised side wind-up jockey wheel
- Steel curved mudguards
- Flexible rubber number plate holder
- Galvanised or stainless steel fasteners
- Galvanised rims, 5-stud, 185 R14 heavy-duty tyres (850kg rated)
- Bearing buddies fitted as standard
- Bow chain and D-shackles included
- Fully adjustable design
- Hot-dip galvanised frame and components
Compatibility
Suitable hull types
- Rigid hull inflatables
- Fibreglass hulls
- Aluminium hulls
- Strong wooden hulls
- Trailer sailers
Popular makes
- Fyran
- Marco
- McLay
- Buccaneer
- Haines
- Pelin
- Ramco
- Stabicraft
- Bonito
- Steadecraft
- Fleetline
- Reflex
- Surtees
Not sure which model?
Tell us your boat — length, hull type, where you launch — and we'll match the right trailer and price.
